QUALITY PRODUCTS USED BY PROFESSIONALS

Industrial Minerals (NZ) Ltd

offers the most competitive high yielding bentonites

TYPICAL Properties

Product Yield (bbl/ton) Fluid loss Gel Strength (10min)
API 13A SEC 11 92 min Max 15 10-12
API 13A SEC 9 92 min Max 16 10-12
SP100 110 min 16-18 15
SP200
-(3%)
-(4%)		 180 min
180 min		 16-18
16-18		 16
31
HD 200
-(3%)
-(4%)		 220
220		 16-18
16-18		 30
45

Viscosity could be described as the flow of a liquid and is measured by centipoises (cps). Good viscosity properties are the key to maintaining the proper flow of cuttings out of the borehole. The yield of drilling fluids is typically compared by how many barrels (42 gal/bbl) of drilling fluid at 40-cps that one short ton (2000 lbs) of bentonite will make. Typically calcium bentonite yields about 35-45 bbl/ton. Some standard western sodium bentonite yields 90 bbl/ton minimum, while some advanced fluids yield over 200 bbl/ton. Even though some bentonites appear to be low cost, they might actually be more expensive when compared by actual yield. HD200 and SP200 have a significantly higher yield than API grade but price wise, the per bbl works out to be lower.

CALL TO PLACE YOUR ORDER

Drilling Fluids Available

Auckland, Christchurch, Tauranga & Dunedin

Free Phone 0800 646 372

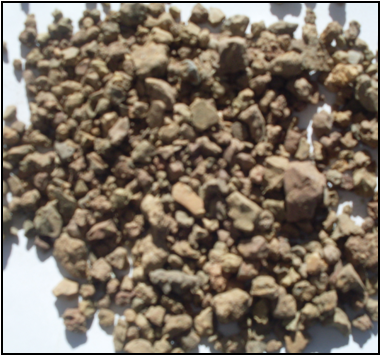

Bentonite Granules
BG 15
A coarse granular bentonite for borehole sealing and other applications

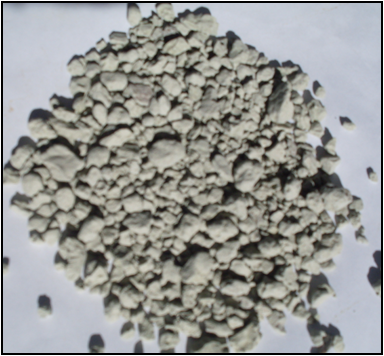

Bentonite Granules
BG 10
A medium granular bentonite for borehole sealing and other applications

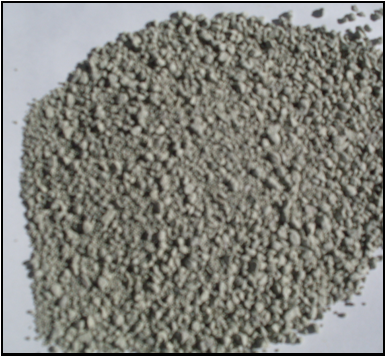

Bentonite Granules
BG 5
A fine granular bentonite for borehole sealing and other applications

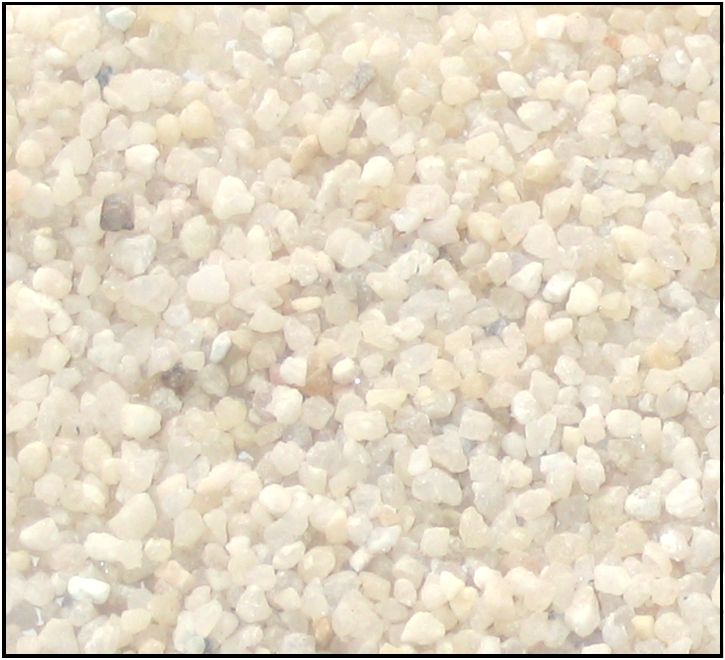

High Purity White Quartz Sand for Gravel Packs, K-Sand
Available in 1.0mm, 1.5mm, and 2.0mm designated gradings our White Sands are perfect for gravel packs, peizometers, and any other application where quality is an important factor.
High Density Sand
Also suitable as filter sand and abrasive blasting media Available in 7 different grades. Super A grade, coarse to Super E grade, fine.
Bulk density of approx 2.48 tonnes to the cubic metre
Specific gravity of approx 4.1 g/m2
Hardness of 8 mohs scale
Marsh Funnel and Cup
Viscosity and gel strength are measurements that relate to various flow properties of fluids.
The marsh funnel is a simple device for routine quick measurements of fluid viscosity.
Fresh water has an approx funnel viscosity of 26 seconds (used to check the calibration of the funnel)

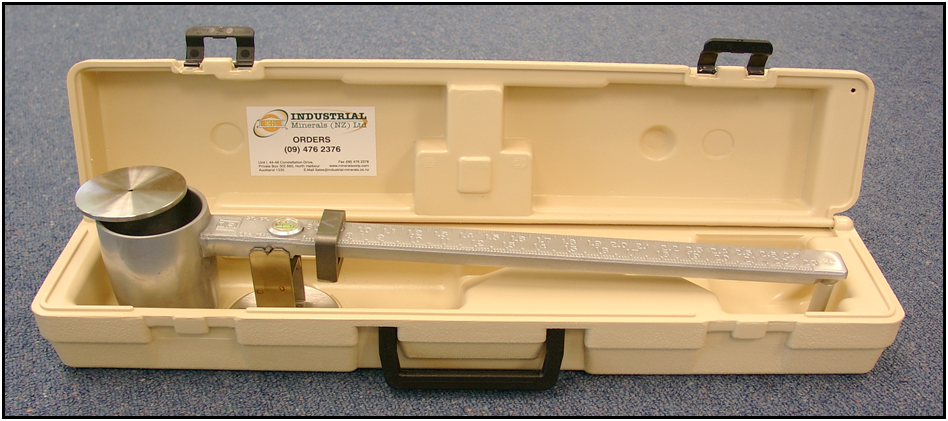

Mud Balance
The density or weight of a given volume of liquid is determined by using the mud balance.
The mud balance is used to check your mud weight.

Industrial Minerals (NZ) Ltd  is committed to offer you the best choice for world leading products in association with our commitment to you for service, experience, distribution and to maintain high stock levels. Providing you with advanced performance and technical support.
