| QUALITY PRODUCTS USED BY PROFESSIONALS MUD BALANCES
Easy to use and a real money saving device.
MARSH FUNNELS AND CUPS
POLYMER DISPERSER
|
If you have any questions or comments about this web site free phone 0800 646 3725 (New Zealand) or 1800 309 734 (Australia) or go to our feedback pageCopyright © 2006-2013 Industrial Minerals (NZ) Ltd |

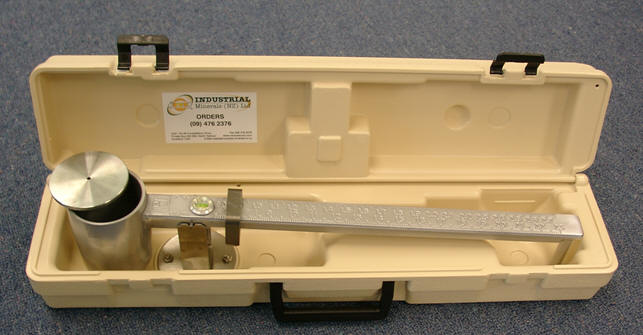

One
of the most important properties monitored throughout the drilling operation is
the weight of the mud. A Mud Balance consists of a beam with a mud cup at one
end and a fixed counterweight at the other end, with a graduated scale. A level
bubble is mounted on the beam to ensure accurate balancing. The Industrial
Minerals Mud Balance is FIELD PROVEN and will withstand the rigors of life on a
rig. At the same time it will provide you with an accurate measure of your mud
weight.

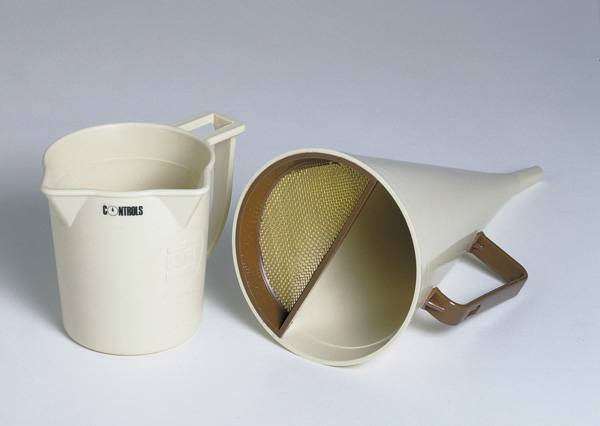

Viscosity
and gel strengths are measurements that relate to the flow properties of the
fluids. The Funnel Viscosity has been measured for many years to provide an
indication of the relative viscosity of drilling fluids. The Marsh Funnel and
Cup are calibrated to outflow one quart (946ml) of fresh water in 26 seconds.

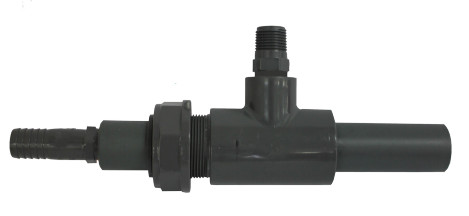

What
we have here is a sure fire way of mixing powdered polymer and other additives
to a mud mix that minimises the development of fisheyes. The disperser is
constructed from PVC with a Teflon® coated venturi. Requiring a liquid flow of
only 75 litres per minute at a pressure of 20psi the disperser will be able to
mix up to 0.5kg of polymer a minute or 25kgs per hour.
